SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

SRS-555 12v 24v micro dc motor for water pump

Motor Customized Specification, Please contact us.

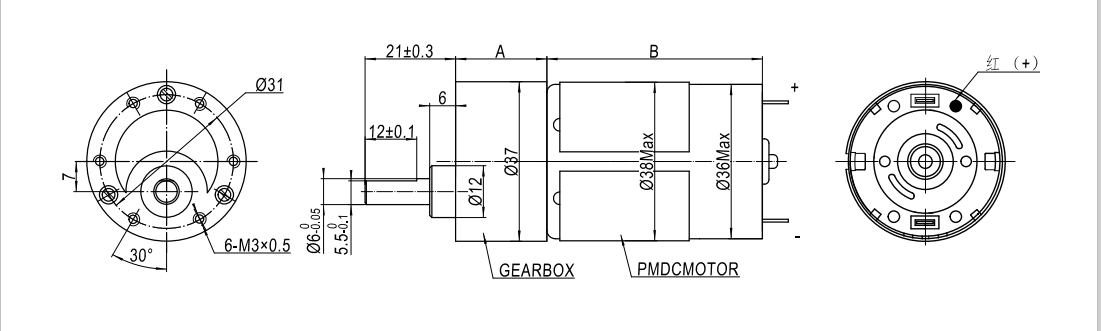

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated					Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

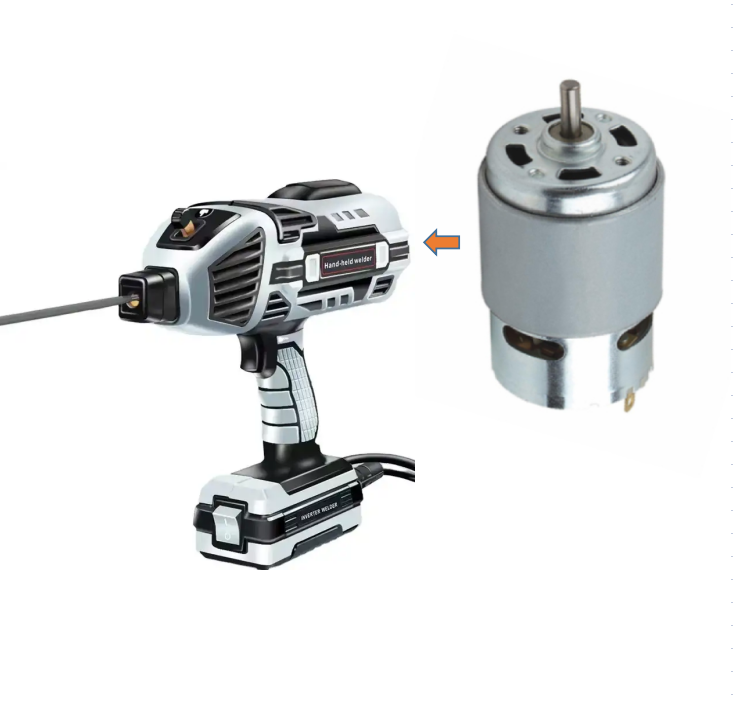

Application

Certifications

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.

What is the payment term for a new customer?

We support various convenient online payment options including major credit cards (Mastercard, Visa), PayPal, and T/T.

I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize technical specifications, shaft lengths, and other performance configurations based on your specific requirements.

Do you have certificates for the motors?

Yes, our motors are certified with CE, FCC, ISO, and other relevant standard credentials. If you require other specific certificates, we can assist in applying for them.

How is your Quality Control?

We have strict QA checks at every production line process. Finished motors undergo thorough inspections using professional quality testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.

What is the typical lead time for customized motor orders?

Lead times typically vary depending on the customization details and order volume, generally ranging from 15 to 30 days.
