WICCA Motor
1 / 4

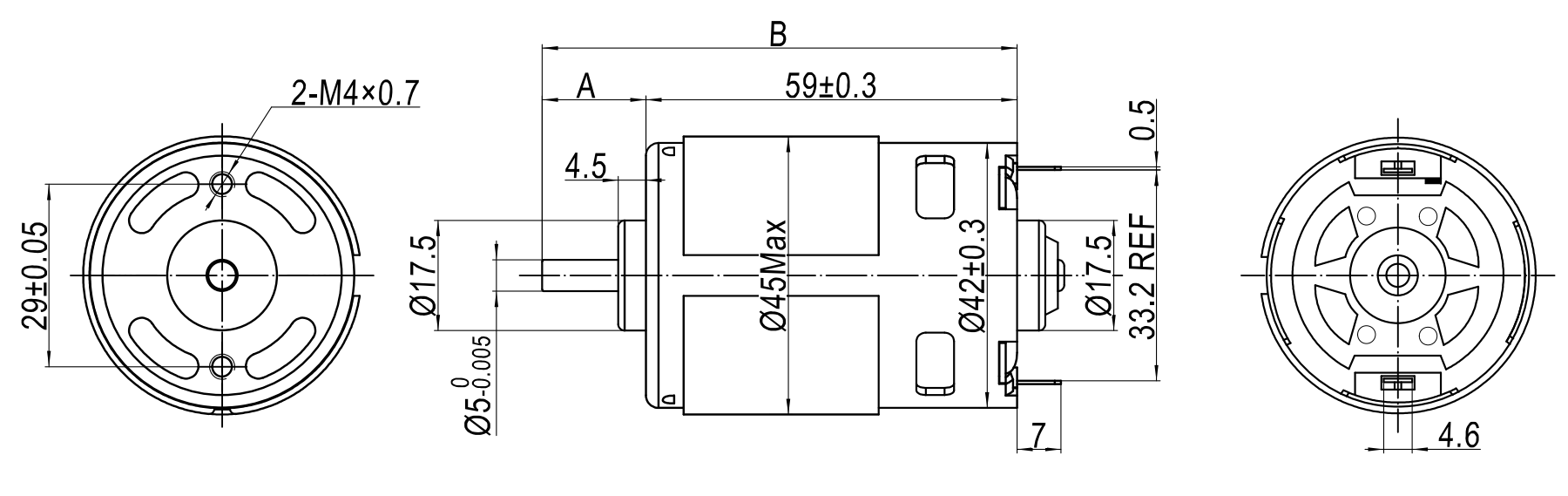

RS-755 H

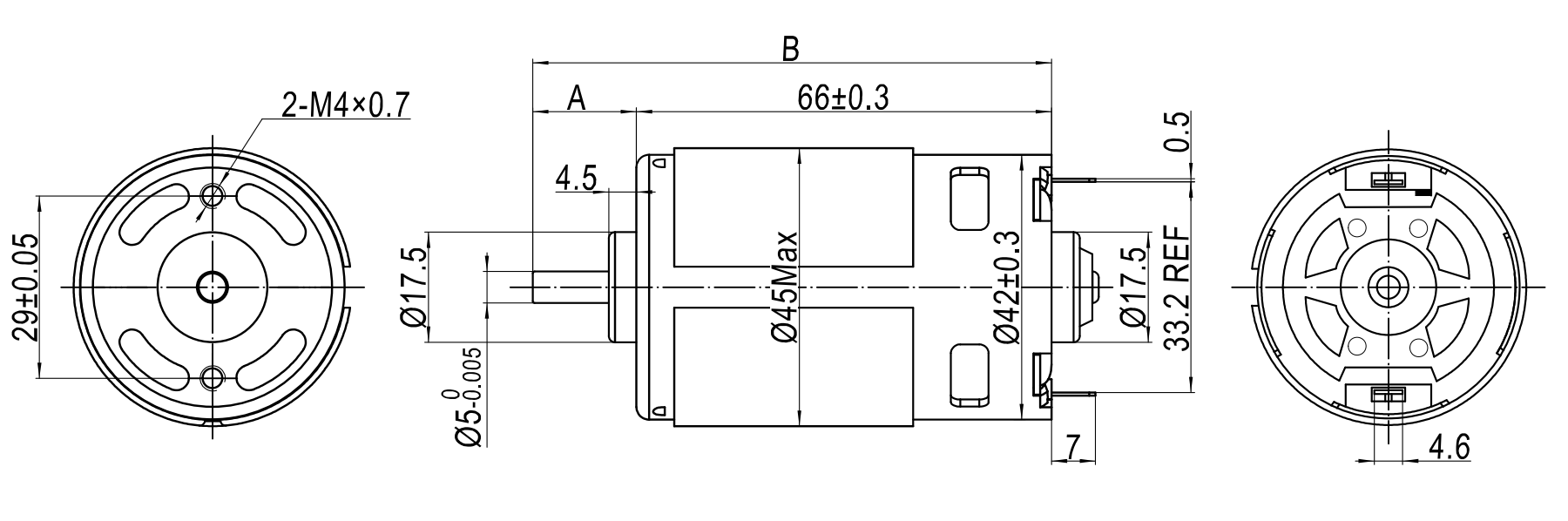

RS-775 H
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 / 826.2 | 111.8 | 115 | 666.9 / 6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 / 452.9 | 13.35 | 4.07 | 245.7 / 2506 |
1. Company Factory
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant business experience.
2. Quality Control
In order to confirm quality, from the receipt of raw material to final shipment, we carefully check every step of the way. Quality is the basis of our development.
We are gold seller and in possession of high credibility.
100% on-time delivery rate ensures your products arrive timely.
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely reply: your inquiry will be answered within 2 hours.
