Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock

Product Description

Product Showcase Banner

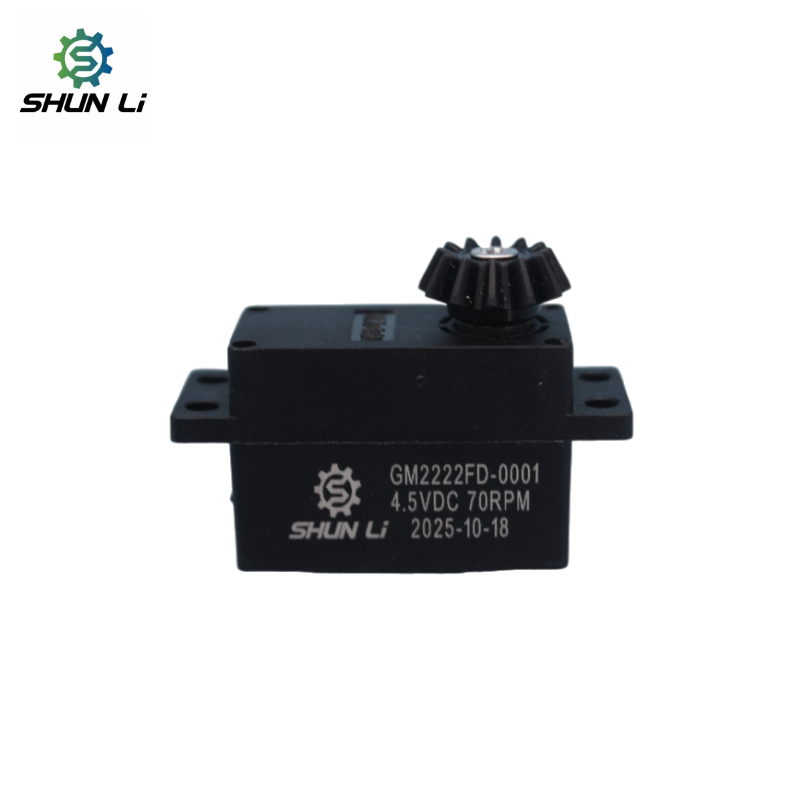

Micro Gear Motor Drawing
Product Model GM2222FD-0001
Ratio 241K
Speed 42RPM-70RPM
Voltage 4.5V
Rated Torque 25 mN.m/30 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
Technical Specifications & Drawings

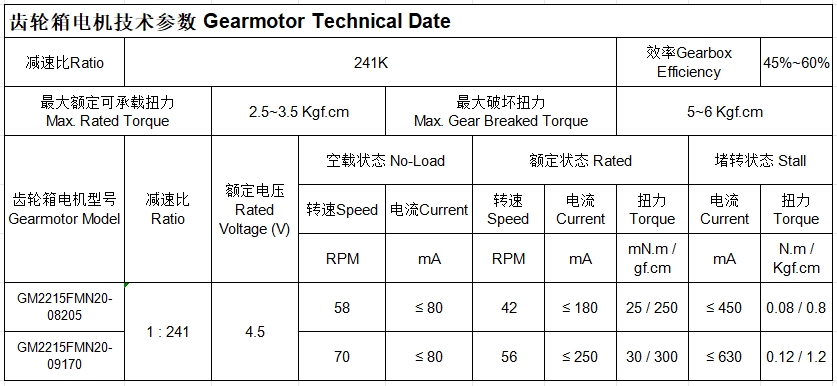

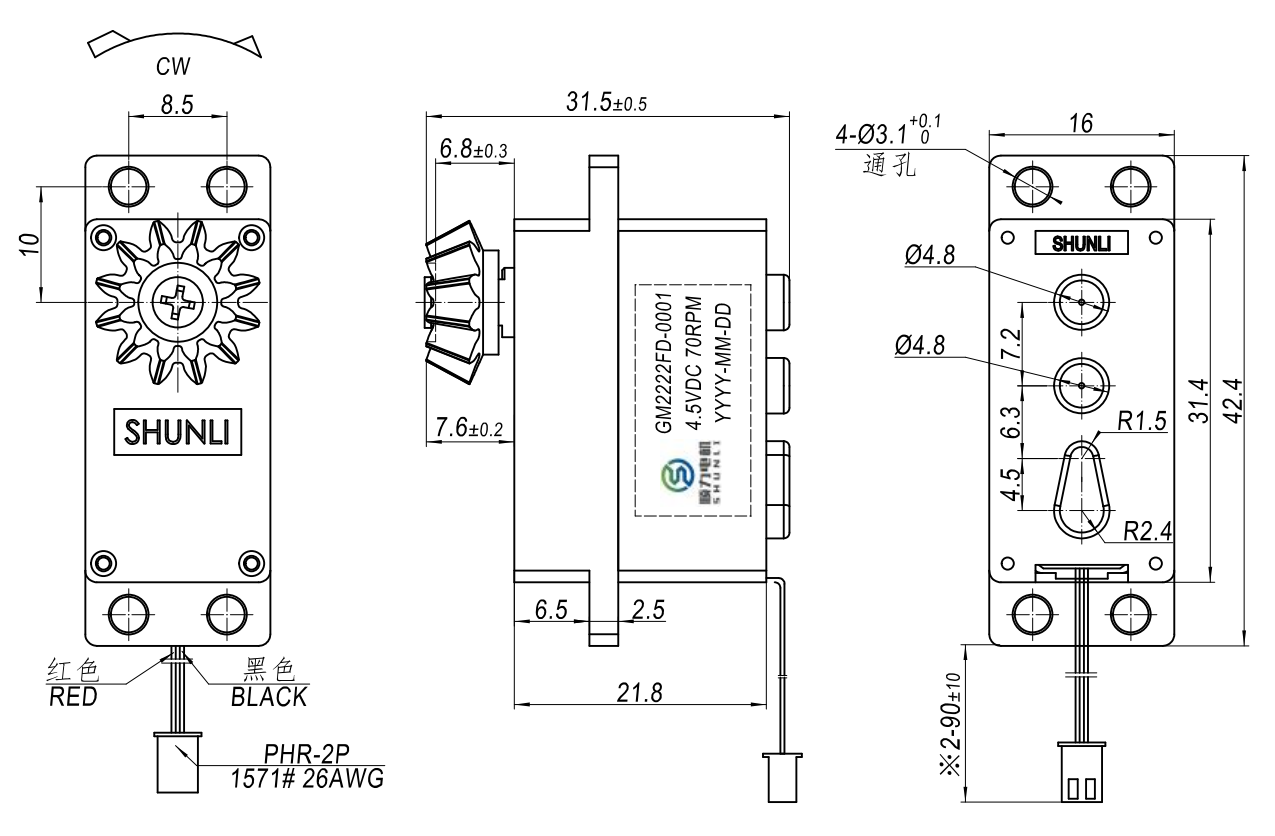

Motor Dimension Details Motor Performance Chart
Product Application & Details
Frequently Asked Questions
Q Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional manufacturing experience.
Q What is the payment term for a new customer?
We can set up a Trade Assurance Order Online for our new customers, which supports online payment via Master Card, Visa, etc. Customers can also make payments using PayPal or T/T wire transfer.
Q I cannot find a suitable motor on your website, can you customize it for me?
Yes, we can customize and develop a suitable motor configuration according to our customer's specific technical requirements.
Q Do you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant industry certificates. If you have specific certificate requirements for your market, we can apply for them accordingly.
Q How is your Quality Control managed?
We have professional inspection staff assigned to every stage of the production line. Once the motor is fully assembled, we use specialized quality testing equipment to evaluate performance. This includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
Q How long does it take for sample delivery?
Standard sample production typically takes 2 to 3 weeks, depending on custom specifications. For detailed schedules, please consult with our technical support team.
