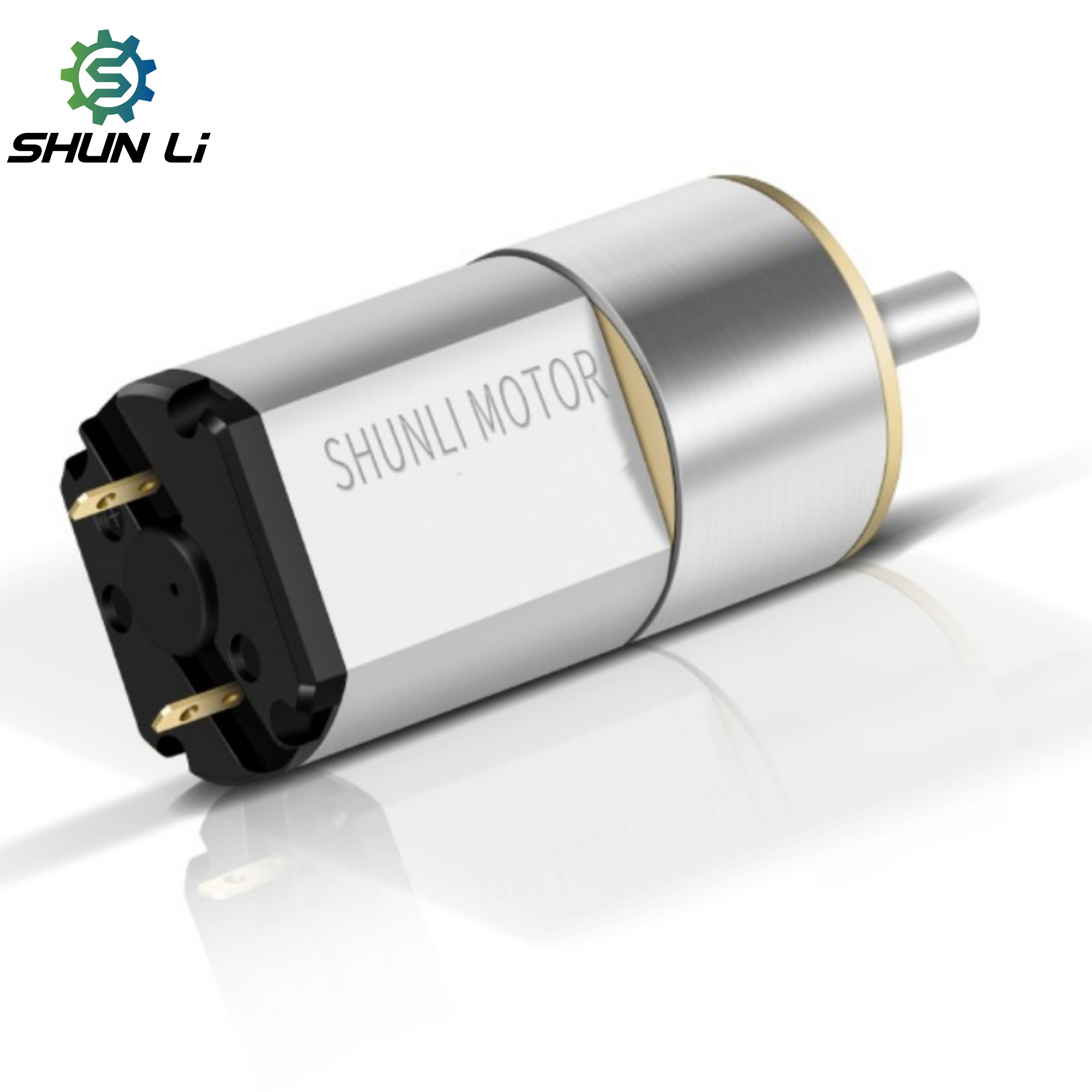

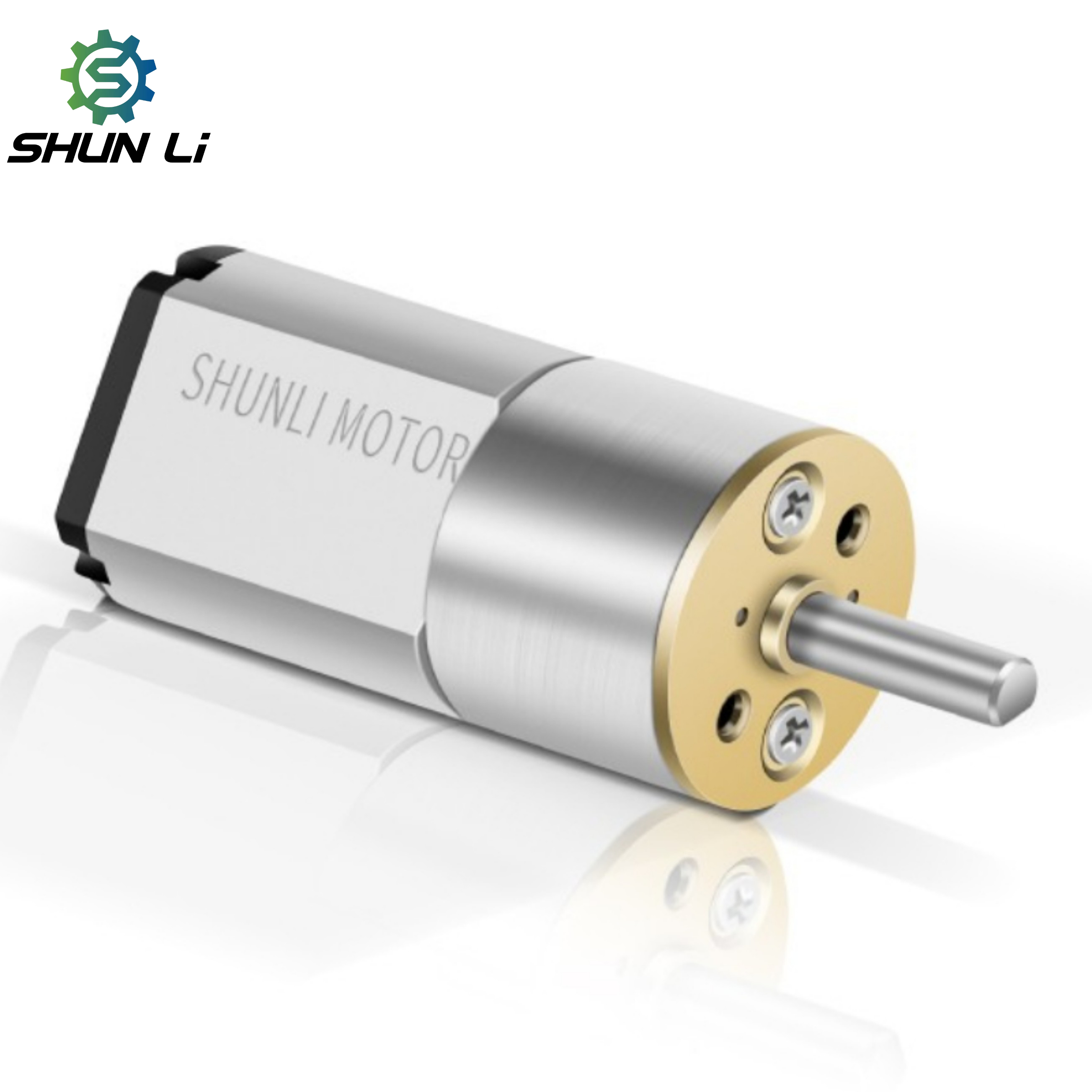

6 volt 12v dc reduction gear micro motor of high torque
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |

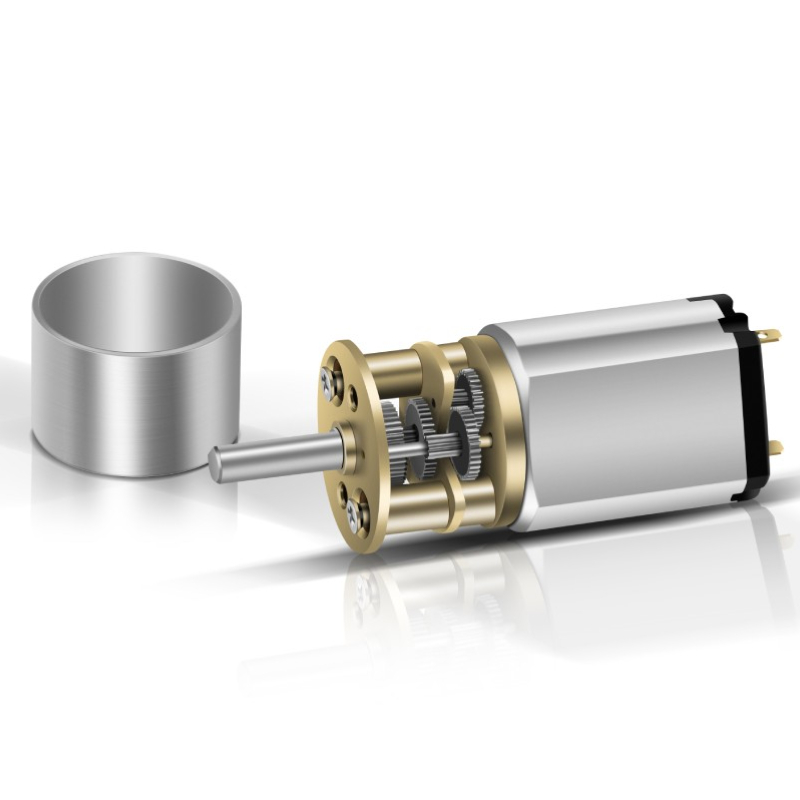

| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |

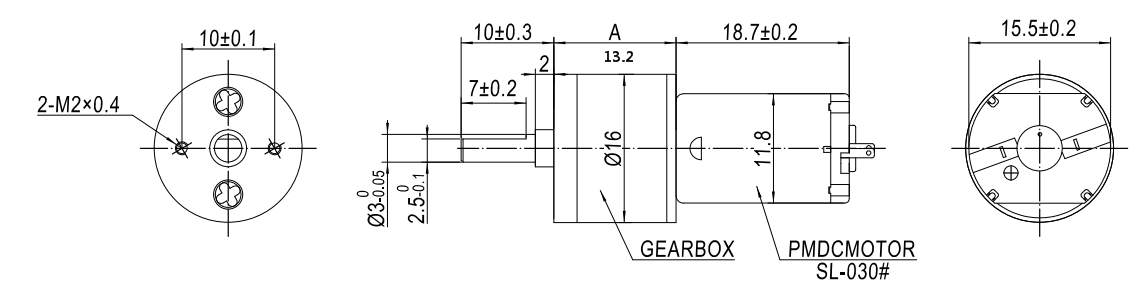

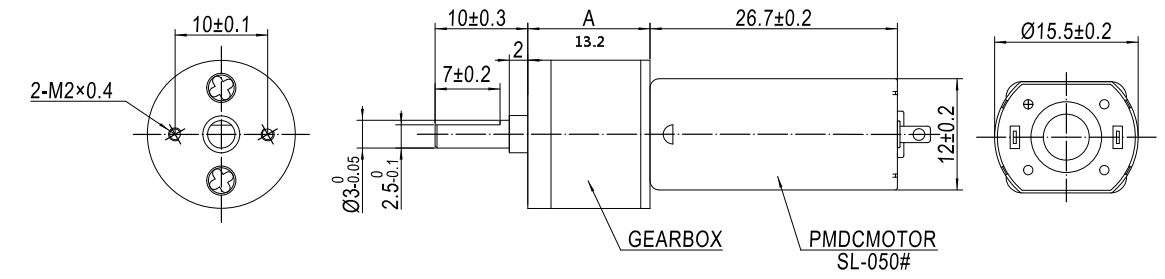

| Gearbox Length “A”(mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management guarantee a high-quality customized product experience.
In order to guarantee top-tier performance, our quality inspection spans from incoming raw materials to final pre-shipment inspections. Quality remains the core foundation of our development.
We are an established gold seller with highly certified industry credibility.
100% on-time delivery rate ensures your production and shipment schedule is strictly met.
Standard samples are produced within 2 weeks; custom prototypes are completed within 3 weeks.
Highly responsive customer service. All messages will be answered within 2 hours.
We are a direct factory. We have specialized in the design and production of micro DC motors and DC gear motors for more than 14 years.
For new transactions, we can initiate online assurance orders, allowing payments via Credit Cards, Visa, MasterCard, PayPal, or Wire Transfer (T/T).
Yes, we specialize in customization. We can design and manufacture a custom motor according to your exact technical and mechanical requirements.
Yes. Our motors carry major certifications such as CE, FCC, and ISO. If your market requires specific additional certificates, we can submit applications to acquire them.
We employ professional inspection personnel at each production stage. Completed products undergo comprehensive laboratory testing, utilizing equipment like Hardness Testers, 2.5D Image Analyzers, Salt Spray Chambers, Life Cycle Testing Rigs, Temperature Testing Chambers, and Noise Level Decibel meters.
Standard samples are typically prepared and produced within 2 weeks, while customized samples requiring unique adjustments are finalized within 3 weeks.
