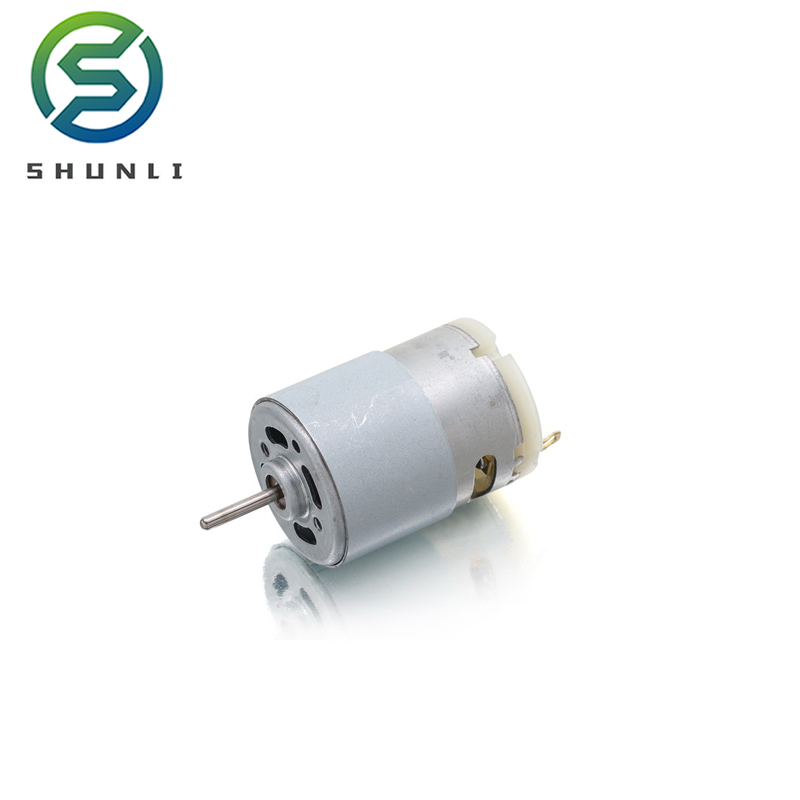

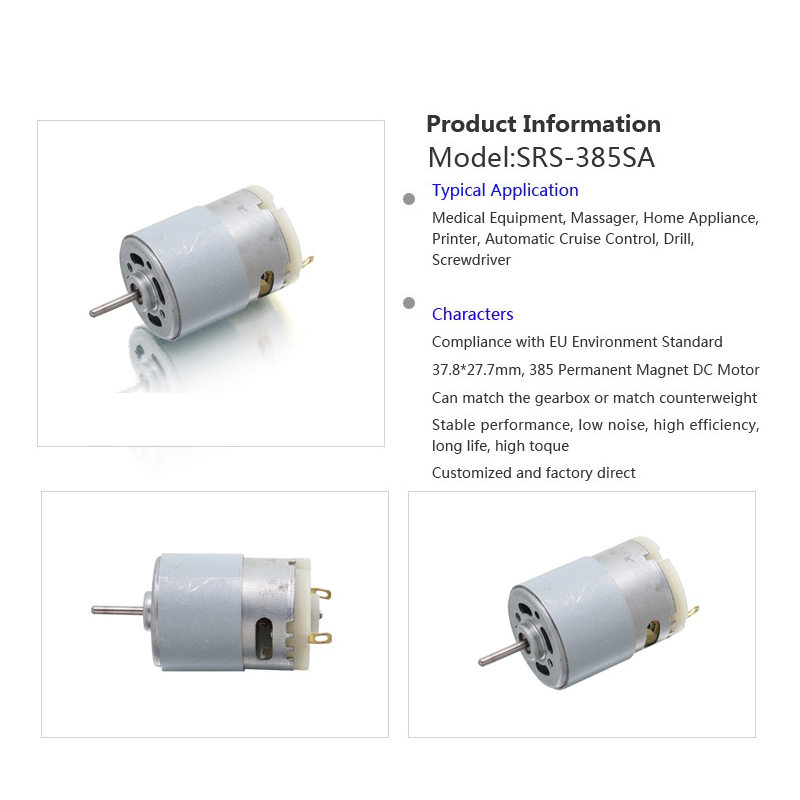

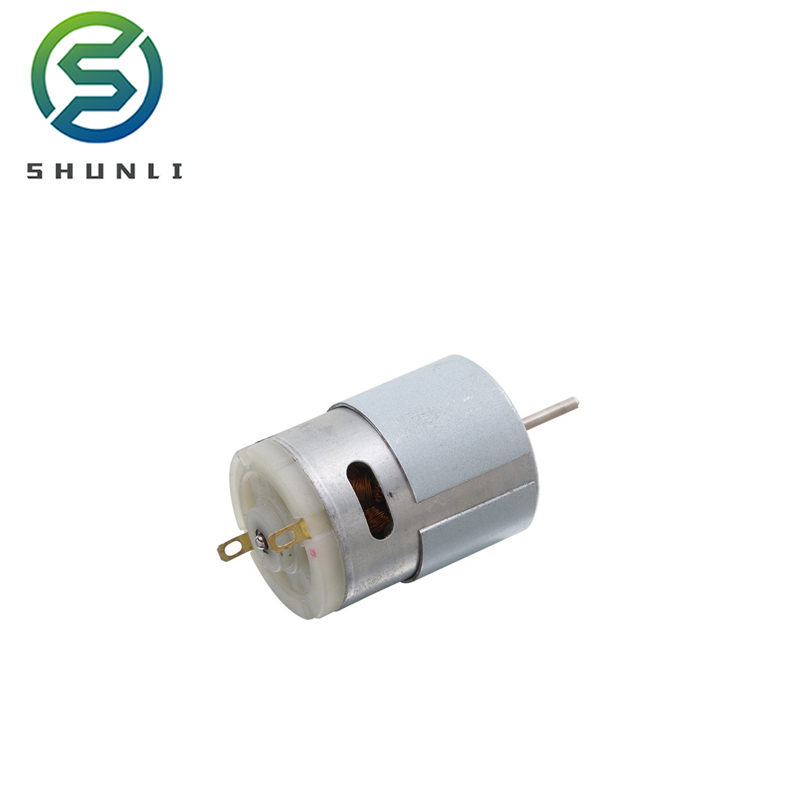

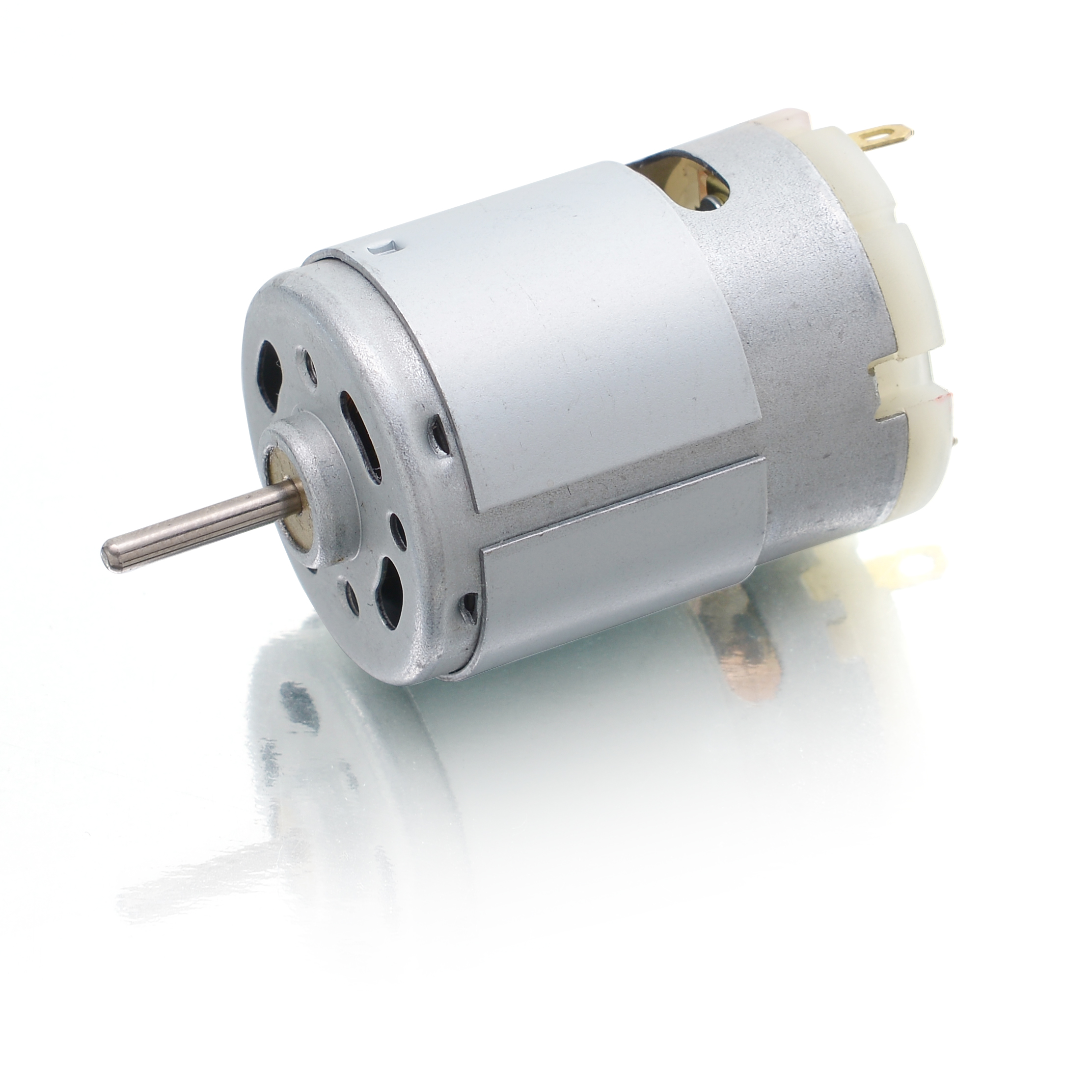

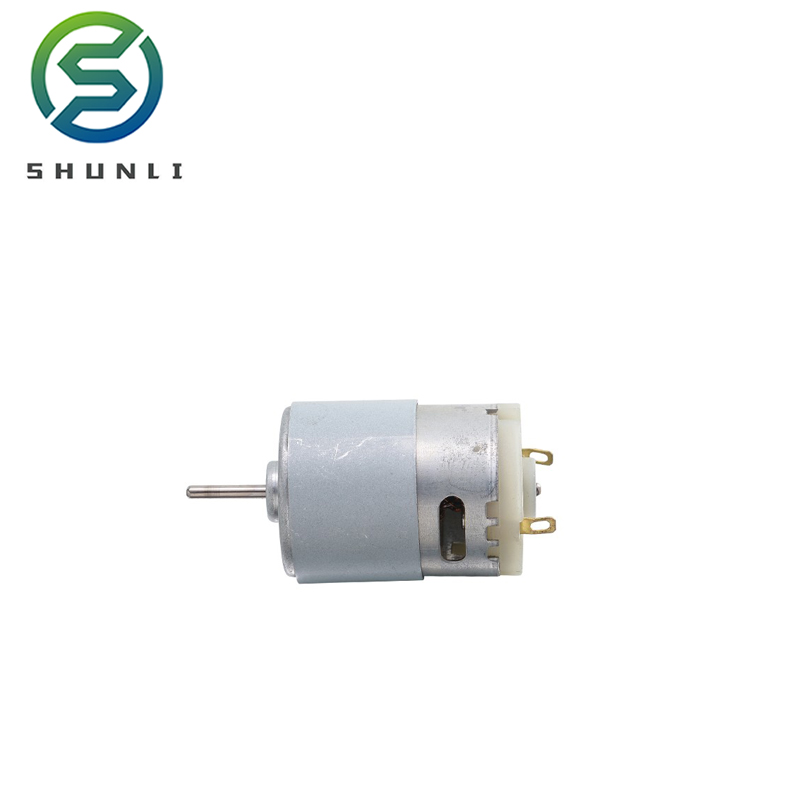

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

1 / 5

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Send Inquiry

Product Description

Promotion

Product Description

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
Model	Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9 / 101	6.98	11.9	70.6 / 720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26 / 114.9	21.68	18.5	84.3 / 860
RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7 / 109	10.12	3.16	59.8 / 610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5 / 76.5	6.53	4.29	45 / 459

Application

Our Company

Established in 2005, the enterprise is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

Production Process

Certifications

Frequently Asked Questions

Q1 Are you a trading company or a manufacturer?

We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

Q2 What is the payment term for new customers?

We can draw up an Online Assurance Order for our new customers, which can be paid online using MasterCard, Visa, etc. Customers can also choose to pay via PayPal, TT, or other convenient methods.

Q3 I cannot find a suitable motor on your website. Can you customize the motor for me?

Yes, we can customize a suitable motor specifically according to our customer's detailed technical requirements.

Q4 Do you have certificates for your motors?

Yes, we hold CE, FCC, ISO, and other relevant certifications. If you have specific requirements for other standard certificates, we can apply for them on your behalf.

Q5 How is your Quality Control managed?

We employ professional quality control staff at every stage of the production line. Once the motor is fully assembled, we conduct tests using precision quality assurance equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, Noise Testers, and more.
